Helical Pier Installation
Our rigs drive every pier to its engineered torque target, typically 10 to 30 feet deep, or further where Parker County's soil calls for it.
Installation details- CALL US TODAY: (817) 402-7113
Engineered helical piers for Parker County commercial projects, new construction, and existing buildings on shifting Texas soil. Family-owned since 2005, with our own manufacturing, our own rigs, and our own crews on every job.
Weatherford sits at the western edge of the Fort Worth Prairie, where clay and caliche soil shift with the seasons like much of the rest of North Texas. Dry summers pull moisture out from under a slab; spring rain puts it back, and that swing is exactly what a helical pier is engineered to anchor past.
Long dry spells shrink the soil under a slab, then heavy rain swells it back. A helical pier is torqued down into soil that seasonal moisture change doesn't reach.

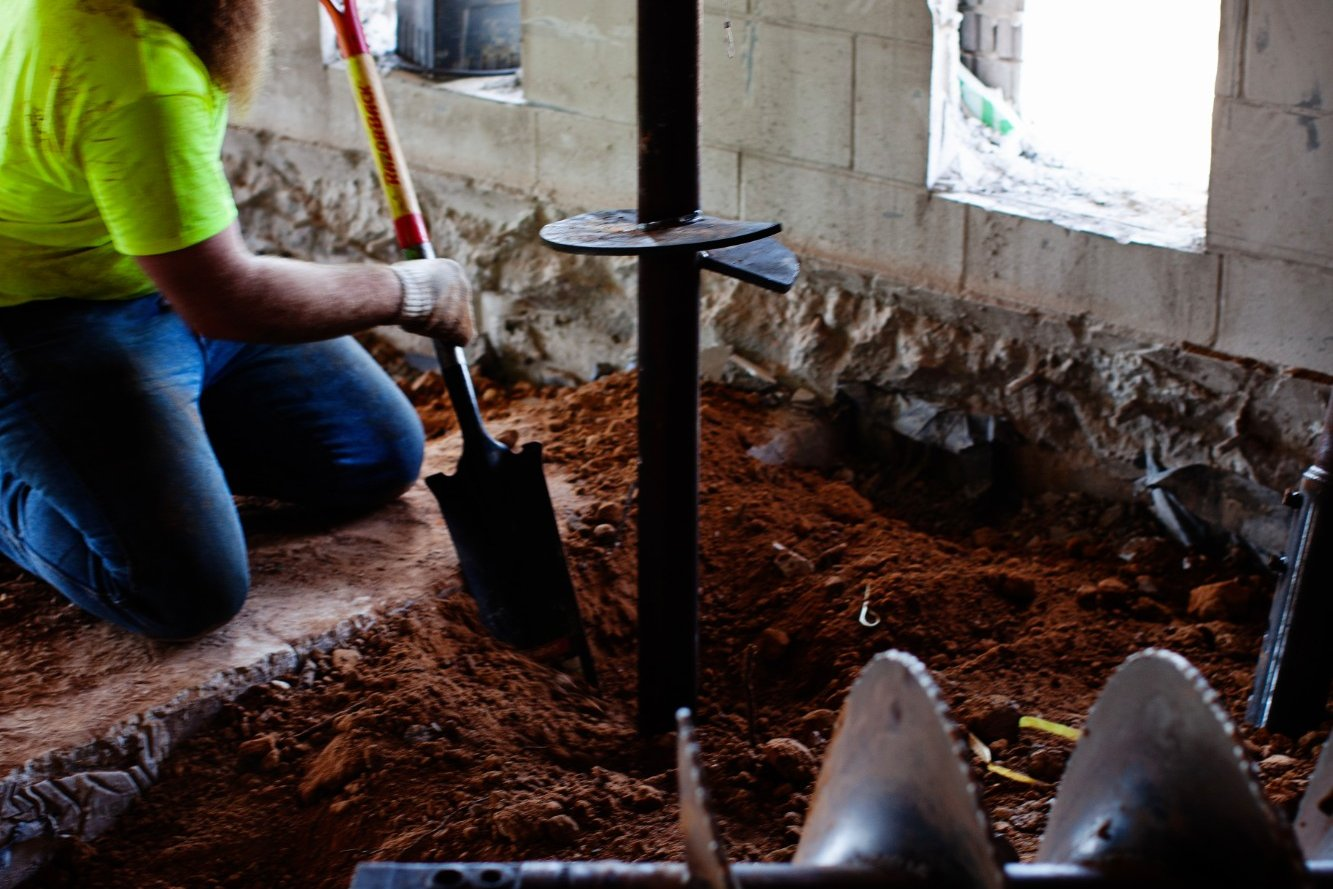

Weatherford's courthouse square dates back more than a century, while new commercial and light industrial sites keep spreading along I-20. Helical piers carry new construction from day one and retrofit under an existing building without tearing out the slab.
Roof drains that empty against the foundation, paved areas that shed water toward it, and poor grading are common causes of movement that looks structural but isn't. Fixing drainage can mean a design needs fewer piers, not more.

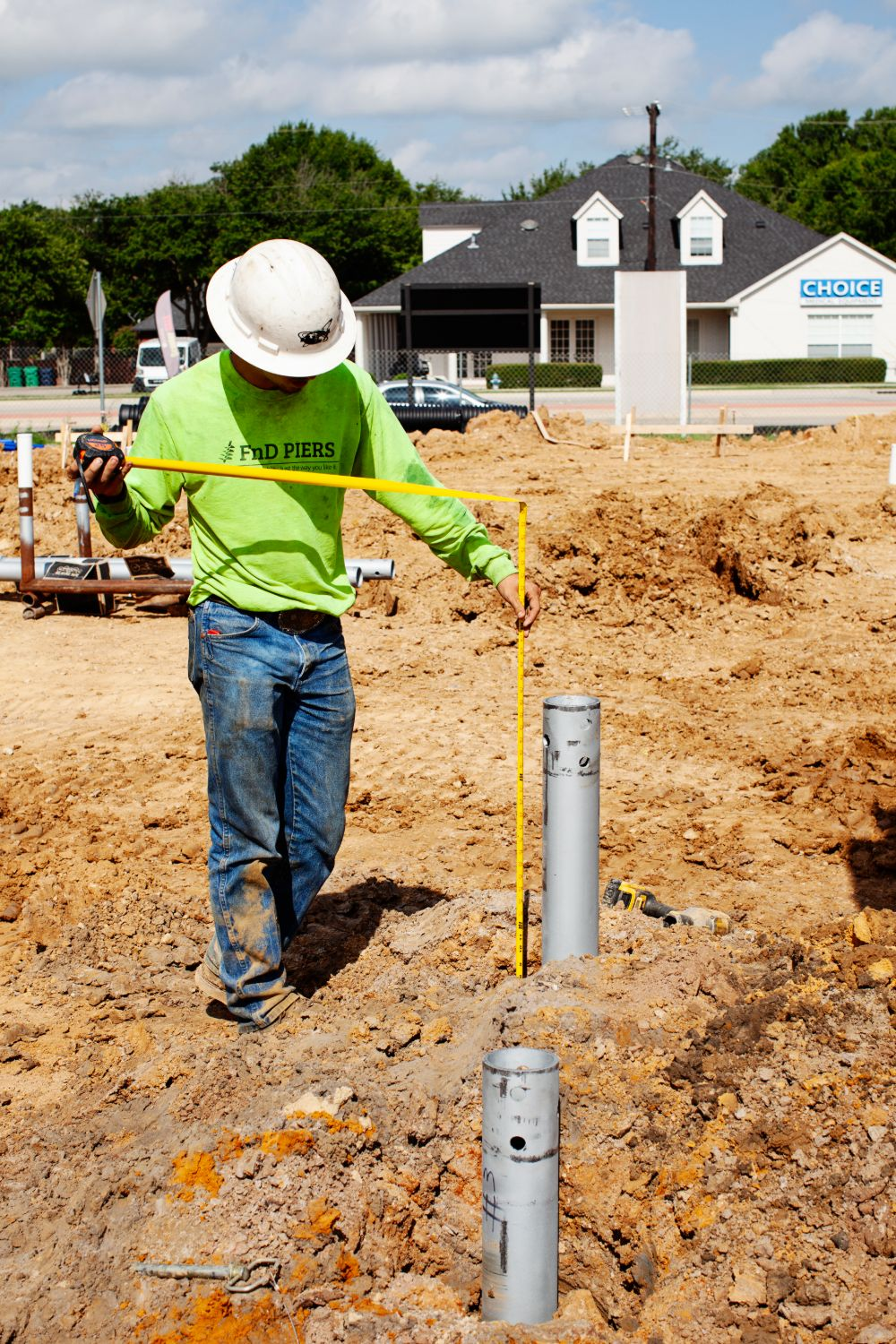

Root cause first. On an existing structure we measure elevations with a professional zip level before recommending anything. If drainage or age explains the numbers, you'll hear that from us, not a pitch for piers.
No single symptom settles the question. A cluster of them, or one that keeps spreading, is worth an engineered evaluation.
The company that manufactures your helical piers is the same one that installs them, so there's no subcontractor to track down if something needs attention later.
Our rigs drive every pier to its engineered torque target, typically 10 to 30 feet deep, or further where Parker County's soil calls for it.
Installation details
We manufacture the same J55 steel, ASTM A572 Grade 50 helical piers our own crews use, and sell them direct to contractors and engineers who install with their own teams.
Manufacturing & sales
Stabilize and lift a settling building with helical piers sized to the structure's load and Weatherford's soil profile.
See the processWe start from your engineer's design, plans, or soil report. On an existing building, a specialist measures elevations with a professional zip level and reviews drainage and history. If the numbers don't support helical piers, we'll say so.
Where piers are warranted, we engineer pier count, spacing, and depth around your structure's load and Parker County's soil.

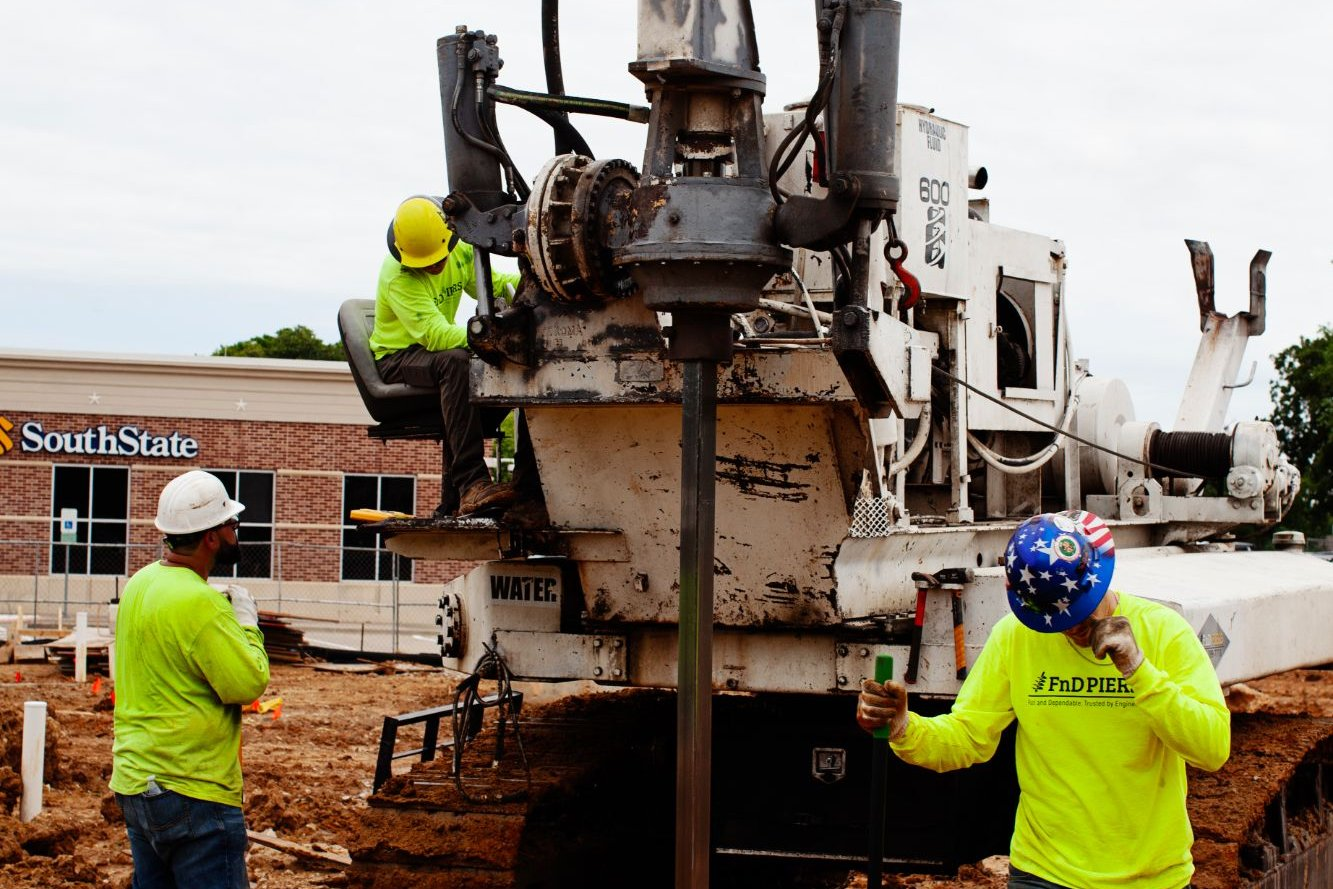

Our own crews and rigs install to that design, tracking torque the entire way so capacity is measured, not assumed.
Each pier's torque is logged against its location. Commercial work carries a 10-year warranty, and every job is covered by our Green Tag Guarantee.
Credentials describe a company. These methods produce evidence about your project.
Every pier is driven to the torque its design requires rather than stopping at a preset depth, since torque tracks the soil's real capacity at that spot.
Each location's achieved torque goes on record, the document an engineer or a future owner can check the installation against.
Compression testing measures downward capacity; tension testing measures resistance to uplift. Both use hydraulic equipment that logs movement under load.
Where a structural engineer has produced a design, we install to it. Any field change goes back to that engineer first, not decided on the fly.
J55 carbon steelASTM A572 Grade 50ASTM A123 hot-dip galvanizingASTM A780 repair standard
Every crew trains through our in-house Helical Trade School, and our CEO, Bill Vaughan, wrote Next Day Helicals, the field reference other installers use for helical pier work.
| Criterion | Helical pier | Push pier | Drilled/poured pier |
|---|---|---|---|
| Carries load | Immediately on installation | Depends on structure weight for resistance | After concrete cures |
| Wet-weather clay | Installs in wet ground, no open excavation | Excavation needed; slower in wet clay | Holes can collapse in wet clay |
| Capacity verified by | Installation torque, logged per pier | Driving resistance | Design and inspection of the excavation |
| Depth reached | To torque criterion, not a set number | To refusal against structure weight | To designed depth |
"Big City Capability and Small Town Service! Bill Vaugn and team have the tools and expertise to solve any issues you may have, but the best part is the personal service and open and honest explanation of the entire process. Call FnD Piers, you will be in good hands."
"As business professionals, my husband and I have worked with FnD Piers for years. From its owner to its employees, they are one big family and their customers are part of the family. Over the top attitudes and altitudes. We highly recommend FnD Piers for its professionalism and integrity. The most trusted company in the business."
"FnD Piers is your go-to outfit for all things foundation! This Team is "the real deal.""
"FND Piers does excellent work — professional, efficient, and reliable every time. Their crew knows what they’re doing and gets the job done right. Highly recommend them for any helical pier or foundation work."
Weatherford anchors Parker County about 25 miles west of Fort Worth along I-20. We install and sell helical piers across Weatherford's zip codes and the surrounding Parker County communities.
East on I-20, about 25 miles toward the Tarrant County line.
Helical piers in Fort Worth →Northeast toward Eagle Mountain Lake, roughly 20 miles away.
Helical piers in Azle →East along the same I-20/820 corridor, about 22 miles.
Helical piers in Lake Worth →Further east on the north side of Fort Worth, roughly 28 miles.
Helical piers in Saginaw →Share your drawings or describe the structure, and we'll come back with a written quote. Test holes are free once the project is approved.
