Building Strong Foundations for Midstream Construction Energy Infrastructure
Every successful midstream construction project—whether it’s a pipeline, a pump station, or a storage terminal—depends on one thing: a reliable foundation. Poor soil conditions, heavy equipment loads, and harsh environments demand a system that provides strength and speed.
That’s where helical piers come in. Unlike traditional concrete foundations that require excavation and curing, helicals are screwed into stable soil layers, delivering immediate load-bearing capacity. For midstream contractors, this means faster schedules, safer job sites, and long-term performance.
In the world of Midstream Construction, ensuring that the foundational elements can withstand environmental challenges is crucial. For instance, projects located in areas prone to flooding can benefit significantly from helical piers, which are adept at providing stability in such conditions. This adaptability not only enhances safety but also shortens project timelines, as fewer delays are encountered due to weather-related disruptions.
Why Helical Piers for Midstream Construction Projects?
Midstream construction involves heavy, high-value assets: pipelines stretching miles across varied terrain, pumping and compression stations that must operate without failure, and tank farms that store massive volumes of product. Helical piers provide:
-
Speed – Install in hours, not days.
-
Strength – Immediate load transfer to deeper, stable soils.
-
Flexibility – Can be installed in remote or difficult-to-access sites.
-
Reliability – Torque monitoring ensures each pier meets design capacity.
With these benefits, it’s no surprise that helicals are becoming the preferred foundation system for energy infrastructure.
Step-by-Step: Helical Pier Installation Process
Here’s how the installation process works from start to finish:
- Site Assessment
Engineers review soil conditions, load requirements, and construction goals. This determines the pier size, helix configuration, and depth needed. -
Mobilization
Equipment and materials are brought to the site. Because helicals require smaller, more versatile equipment than drilled shafts or driven piles, mobilization is often quicker and more cost-effective. -

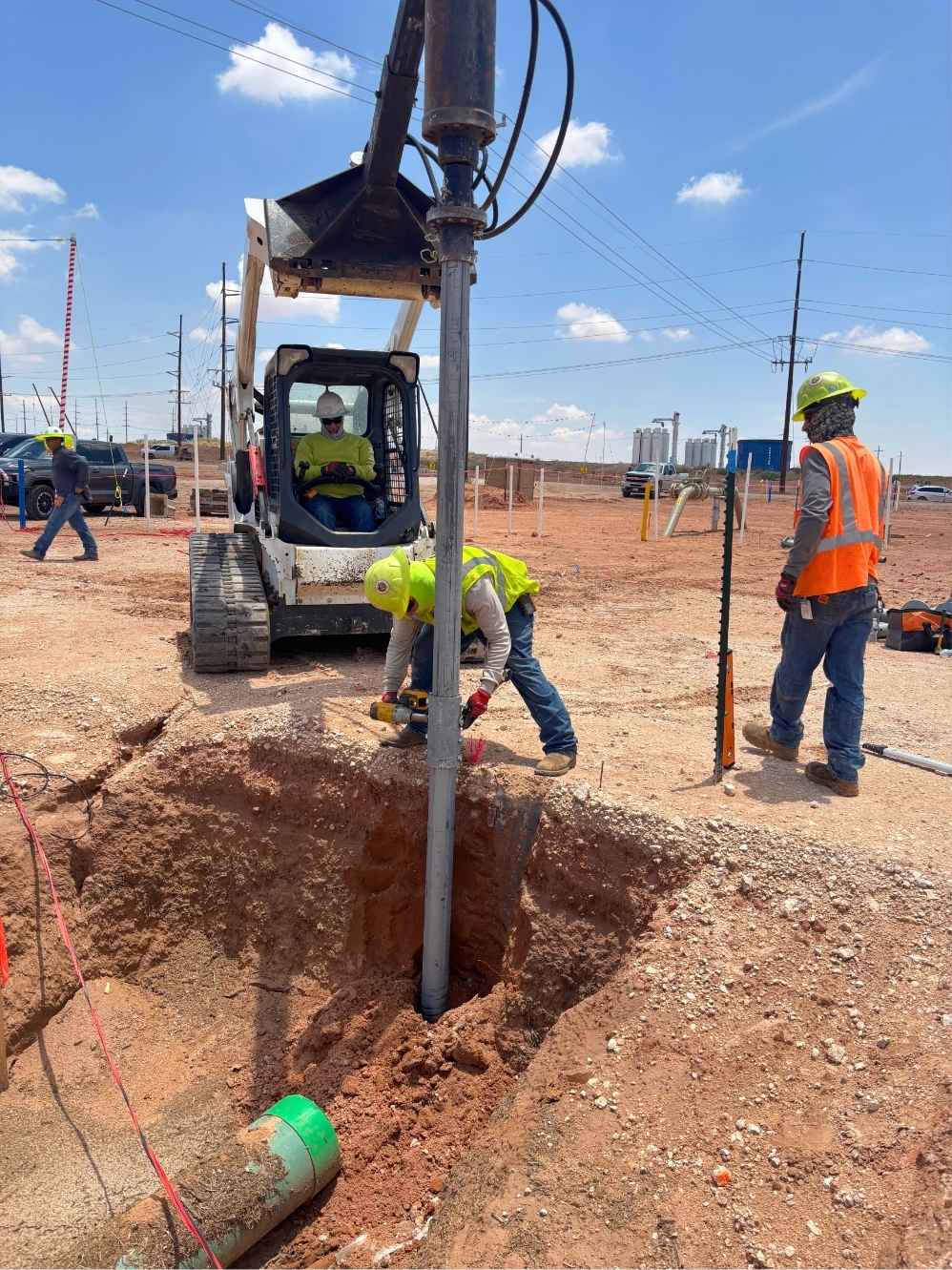

Pier Installation
Using hydraulic drive heads, steel shafts with helical plates are rotated into the ground. The helices cut into the soil, advancing the pier until it reaches the required torque value—an indicator of capacity. -
Torque Monitoring
Real-time torque readings verify that each pier meets the specified load-bearing capacity. This eliminates the guesswork common in concrete foundations. -
Immediate Load Transfer
Once installed, the piers can take load immediately. Whether supporting a pipeline support, equipment pad, or storage tank foundation, construction can proceed without delays for curing. -
Connection to Structure
Piers are capped and connected to the structural elements—such as beams, skids, or foundation slabs—ensuring secure load transfer.
The advantages of helical piers extend beyond their installation. Post-installation, the monitoring of pier performance is crucial. Advanced technologies, such as embedded sensors that provide data on load distribution and soil conditions over time, can be integrated into the foundation system. This data is invaluable for ongoing maintenance and can extend the service life of the infrastructure significantly.
Midstream Applications of Helical Piers
Helical piers are versatile across many midstream construction projects:
-
Pipeline supports in unstable or swampy terrain.
-
Pump and compressor stations with heavy equipment.
-
Tank farms and terminals where soil settlement is a risk.
-
Temporary or permanent foundations in remote areas.
Wherever stability, speed, and reliability matter, helicals provide a competitive edge.
Build on the Right Foundation with FnD Piers
At FnD Piers, we specialize in designing and installing helical foundations for the energy sector. From site assessments to torque monitoring, we ensure your midstream project is built on strength from day one.
Build Smarter. Build Stronger.
We encourage clients to consider helical pier foundation design for their next project.
Contact us today for a site assessment or project quote. (817) 402-7113
