Capacity, verification, submittal documentation, scheduling and coverage questions from the people who run commercial builds, facility repairs, and midstream infrastructure. For general specification questions, start with the contractor FAQ.
The technology is the same; the job is not. Commercial and energy projects bring heavier vertical loads, lateral and uplift forces, tighter engineering specifications, formal submittals, and other trades waiting on the foundation. The answers below are written for that context: what the engineer of record needs, what the inspector reviews, and what the schedule gains.
Scale, forces and paperwork. Commercial projects carry heavier vertical loads plus lateral and uplift forces from wind and equipment, and they run under tighter engineering specifications with formal submittals and inspections.
In practice that means larger diameter shafts, multiple helices, deeper embedment, and custom-engineered configurations rather than standardized ones. It also means the installation happens alongside other trades, utilities, steel erection, concrete placement, so process discipline matters as much as the pier: a foundation delay on a commercial job stalls everyone downstream.
New commercial building foundations, structural column support, equipment pads, retaining walls and tiebacks, and repair of settled commercial structures.
Helical piers earn their place on projects with high water tables or weak soils, where a drilled shaft is the first thing to stall. On repair work, common failure patterns we are brought in for include settlement and uneven floors, water-driven soil movement, spreading structural cracks, and sagging columns in multi-story buildings.
Yes, when configured for the load. Multi-story buildings, warehouses, retail centers and industrial facilities are standard commercial applications.
The configuration comes out of the engineering: shaft size, helix arrangement and embedment depth are specified for the structural loads and the soil profile, and every pier is advanced until it achieves the torque the design calls for, which is the field verification that the capacity is really there.
Growing or reappearing cracks, doors and windows that stick, gaps opening where walls meet floors or ceilings, sloping floors, visible movement in columns or load-bearing walls, and water pooling at the perimeter.
Movement in support columns and beams is the one never to sit on, especially in multi-story buildings where the structural loads are significant. We perform commercial foundation inspections, and the same standard applies as everywhere else on this site: if the measurements do not show a real problem, that is the answer you get.
A 10-year warranty, plus our Green Tag Guarantee on the job itself.
The Green Tag Guarantee is a promise about inspection day: we show up with everything the job requires, we install exactly what the engineer's spec sheet calls for, and the work earns its green tag. If you are not happy, the money comes back. Ask for the written warranty terms with your proposal.
Pipeline supports across varied terrain, pump and compressor stations, tank farms and terminals, and temporary or permanent foundations in remote areas.
These are heavy, high-value assets that must operate without failure, often sitting on soils nobody would choose. The design question is the same as on any deep foundation: get the load through the unstable material into soil that can carry it, and prove it did. Our midstream and energy construction service page covers the offering itself.
Immediate load transfer, verified capacity at installation, and mobilization that reaches sites a concrete operation cannot.
There is no excavation waiting to collapse and no concrete waiting to cure, so the foundation is ready for load the day it goes in. Installation equipment is smaller and more versatile than what drilled shafts or driven piles require, which is what makes remote and difficult-access sites workable. And torque monitoring means each pier's capacity is measured as it is installed rather than assumed from a soil report.
Six steps: site assessment, mobilization, installation, torque monitoring, immediate load transfer, and connection to the structure.

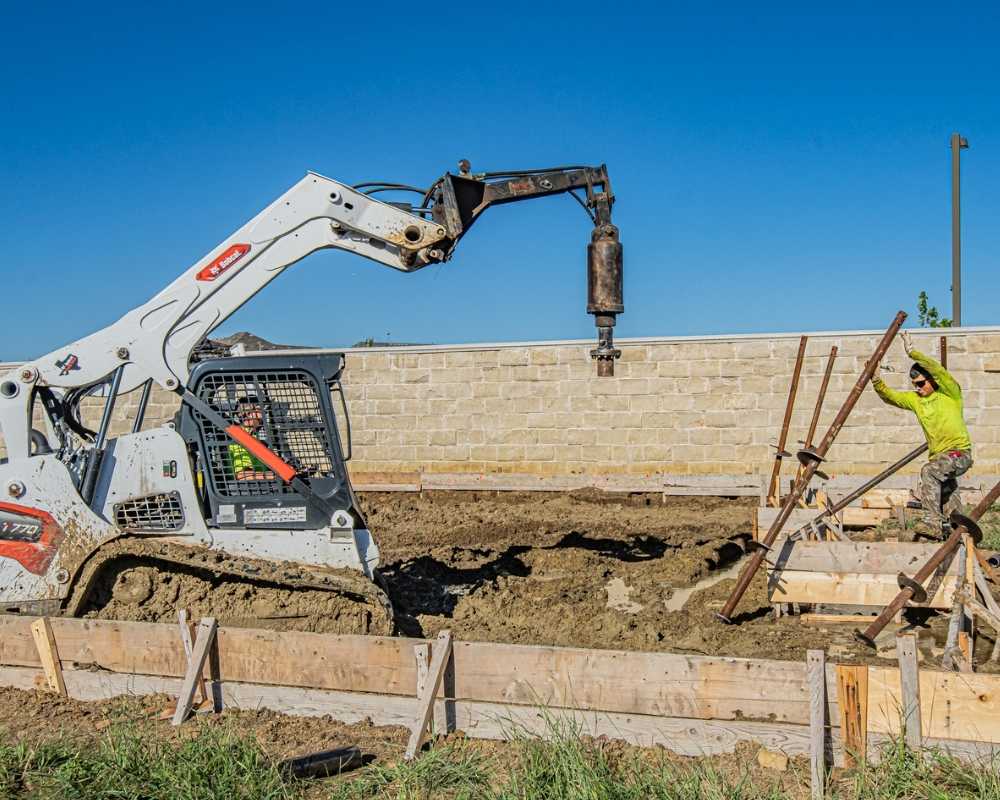

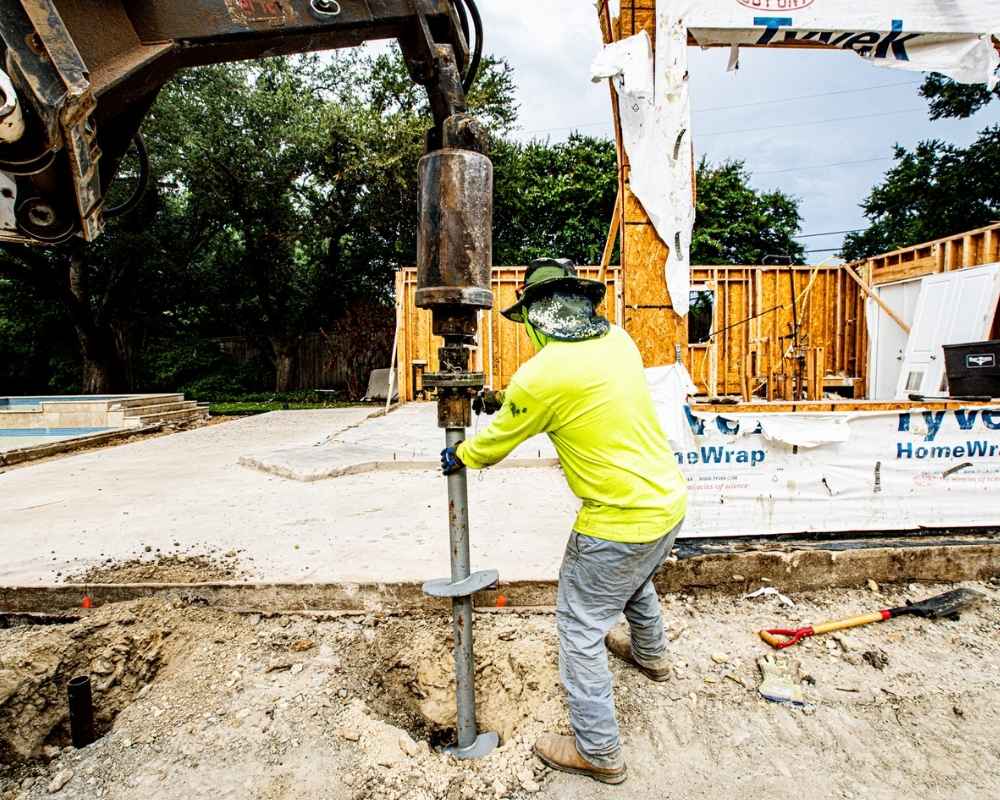

Engineers review soil conditions and load requirements to set pier size, helix configuration and depth. Equipment mobilizes, steel shafts with helical plates are rotated in with hydraulic drive heads until each pier reaches its required torque value, and real-time torque readings verify capacity as the work proceeds. Once installed, piers take load immediately and are capped and connected to beams, skids or foundation slabs.
Yes. Unstable, wet and flood-prone ground is where helical piers are at their strongest relative to the alternatives.
The pier bypasses the saturated surface layers and transfers load to deeper, stable soil, and rain does not stop the work the way it stops excavation and curing. Pipeline supports in swampy terrain are a named application for exactly this reason.
Capacity is designed per project and proven per pier: each one is advanced until it achieves the torque the design calls for, and load testing is available where the engineer requires it.
As one published reference point, we have documented a smaller-scale project where every pier reached at least 25 KIPS, verified by torque monitoring; commercial configurations are engineered upward from the same verification method. Compression testing confirms what a pier carries when pushed down; tension or uplift testing confirms resistance when pulled, which matters where wind and equipment loads act upward.
A torque log recording what each pier achieved at each location, load test data where testing was performed, and installation records against the engineered drawings.
Commercial work runs on detailed submittals and formal inspections, and the torque log is the document that ties what was designed to what went in the ground. It is what the engineer of record, the inspector, and a future owner review, and it is what our Green Tag Guarantee is built around.
Yes. The engineer of record's design governs, and proposed deviations go back to the engineer rather than getting made in the field.
Field improvisation on an engineered foundation is one of the most consequential failures in this trade. If site conditions argue for a change, that is a conversation with the engineer, documented, before anything advances.
The contractor. FnD does not file permit applications as part of the job.
Where the municipality or authority having jurisdiction requires a permit, applying is the contractor's or owner's responsibility. What we supply is the documentation that supports it: compliance with the engineered design and the torque record the inspector reviews.
It removes the two big foundation waits: excavation and cure time. Piers carry load the day they go in, and non-specialty helicals install next day.
We have helped commercial contractors cut their foundation install timeline substantially, in our published account by as much as half, because trades that wait on concrete do not wait on helicals. Weather resilience compounds it: rain stops drilled shafts and pours, not pier installation.
Texas and surrounding states, including Oklahoma, New Mexico and Arkansas. Pier product ships nationwide.
Remote and difficult-access sites are a normal part of midstream work rather than an exception; whether a specific project fits comes down to scope and scheduling, so ask.
Quoted per project, because pier count, configuration and depth come out of the engineering. Our published per-pier installed ranges are the honest starting point.
The ranges, including 4.5 inch shaft configurations commonly specified on heavier work, are on the pricing page with their assumptions and the date they are current as of. For a real number, send the design loads per support point and the geotechnical report if one exists.
